Dicer Shredder

HART Design & Manufacturing’s Dicer Shredder is a Direct Shred unit designed to operate directly with a HART Casting Line. The Dicer Shredder continuously receives cheese sheets from the Casting Machine and reduces them into uniform shreds or cubes using precision slitting and cutting technology.

Direct Shred for Casting Lines

The Dicer Shredder feeds continuously from a casting machine and performs precise slitting and cutting to produce uniform shreds or cubes. With servo-controlled slitting and cutting heads, the Dicer Shredder delivers repeatable cut quality based on the installed cutting format and programmed recipes.

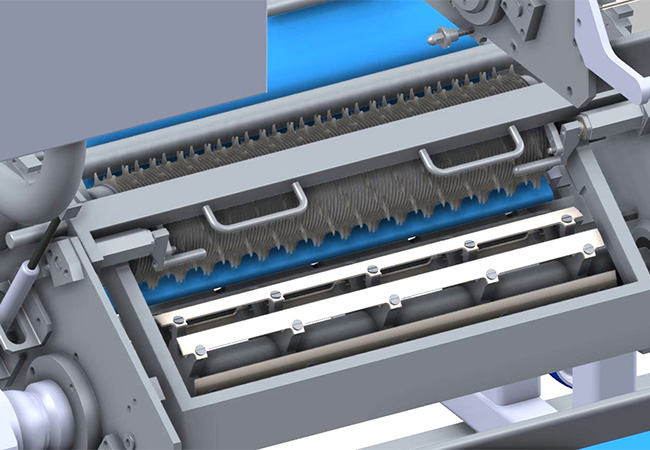

Close up of the DS1 Dicer Shredder mechanics and Slitter tool.

Features

  • Integrated infeed, slitting, cutting, and discharge in one compact machine
  • Servo-controlled slitting and cutting heads for precise, repeatable cuts
  • Fully Automatic, Continuous Operation
  • Touchscreen HMI for recipe selection and operating parameter adjustments
  • Change parts optimized for specific cheese products and cut formats
  • Stainless steel construction using AISI 304 and 316 materials
  • Washdown-ready design for sanitary dairy processing environments

Operation

Cheese sheets are automatically fed from the casting machine into the Dicer Shredder infeed conveyors. Slitter wheels cut the sheets to the configured widths, and cutting heads then cut the product to programmed lengths. Finished shreds or cubes are discharged via the outfeed conveyor to downstream equipment.

Operators select recipes and adjust settings through the touchscreen HMI, with physical pushbuttons provided for start, stop, reset, and emergency stop functions.

Safety and Sanitation

The Dicer Shredder is equipped with standard safety features including emergency stop buttons and fixed physical guarding around hazardous areas. Guards are protected by safety switches that stop machine movement if opened during operation.

The machine is constructed of stainless steel and food-grade materials and is designed for washdown cleaning. Electrical enclosures and the touchscreen HMI are protected to support sanitary operation when proper washdown procedures are followed.

Optimize Your Direct Shred Application

To get the most out of your Dicer Shredder and optimize your Direct Shred production process, incorporate HART-integrated downstream Shred Line equipment, including an Incline Conveyor, Anti-Cake Dispenser, and Tumble Drum.

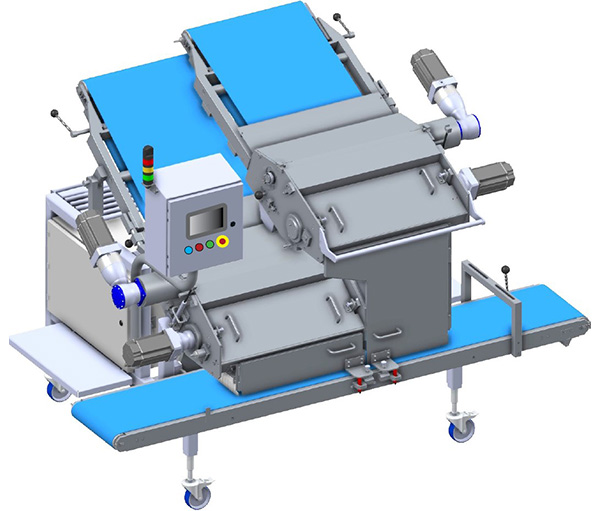

3D render of the Hart DS1 Dicer Shredder machine.

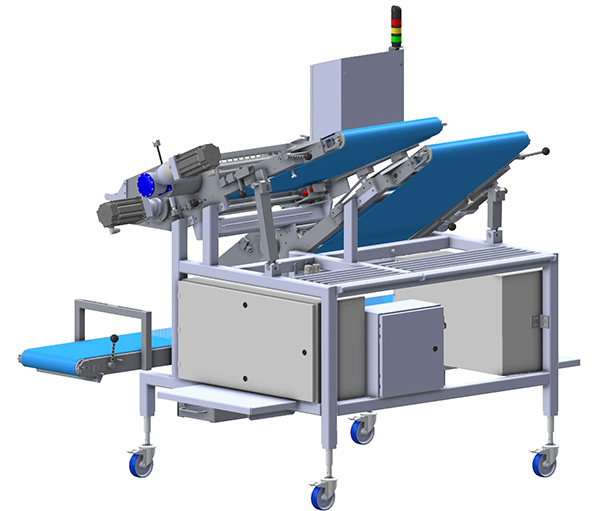

Rear Angle 3D render of the Hart DS1 Dicer Shredder machine, showing the infeeds conveyer.
Maximum Throughput Capacity Pounds Per Hour
Maximum Sheet Width Inches (Per Lane)
Lanes of Infeed and Cutting Configuration
